ETB22M

The belt series linear modules are applicable to production line workpiece changing devices, packaging film cutting devices, CNC processing machine room handling devices, etc. The application industries include TFT-LCD liquid crystal panel equipment, solar energy equipment, food equipment, packaging equipment and CNC processing equipment.

Classification:

Standard Belt Module Slide ETB Series

Inquiry Back

Details

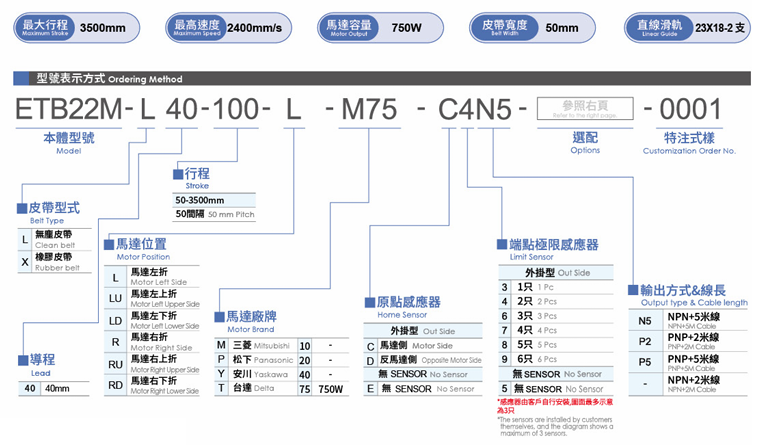

Model indication method

Basic Style

sex

able

Position repeatability

mm

±0.04

Lead

mm

40

Maximum speed

rpm

3600

Top speed

mm/s

2400

Maximum weight that can be carried

Horizontal use

kg

85

Vertical use

kg

/

Rated thrust

N

367

Standard itinerary

mm

50-3500mm /50 interval

department

Product

AC servo motor capacity

IN

750

Belt width

mm

50

High rigidity linear guide

mm

W23XH18

Origin sensor

Hacks



T62N2 (NPN+2m line)

The belt series linear modules are applicable to production line workpiece changing devices, packaging film cutting devices, CNC processing machine room handling devices, etc. The application industries include TFT-LCD liquid crystal panel equipment, solar energy equipment, food equipment, packaging equipment and CNC processing equipment.
